Aluminium 1200 Sheet / Plate

Aluminium 1200 Sheet / Plate Supplier & Stockist in India

Filter

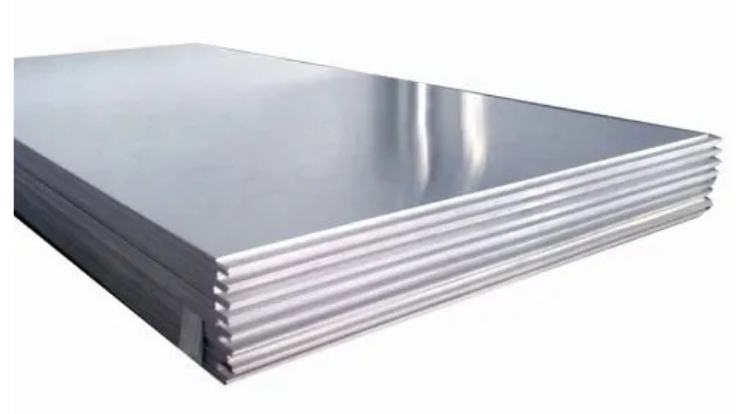

Aluminium 1200 Sheet / Plate

Max Pipes and Fittings Inc. is proud to offer a comprehensive range of Aluminium Sheets & Plates manufactured from Aluminium Alloy 1200. Our products are available in various forms including hexagonal, wires, rectangular sheets, flanges, valves, couplings, nipples, blocks, and angles. These sheets and plates are renowned for their excellent corrosion resistance, durability, sturdy construction, and reliable load-bearing capacity. Our Aluminium 1200 Sheets & Plates are sourced from certified and trusted Stockist and Suppliers who adhere to strict industrial standards and quality norms. They are available in 26 gauge and in thicknesses of 0.5 mm, 1 mm, 2 mm, 3 mm, and 4 mm, catering to diverse industrial and commercial requirements.

Features:

  • Rust-proof and durable body
  • Excellent corrosion-resistant construction
  • High tensile strength for reliable performance
  • Lightweight yet sturdy, suitable for various industrial applications
  • Good formability for cutting, bending, and shaping without cracking

Sheet & Plates Specifications

Standards ASTM B209 / ASME SB209
Thickness 0.2 mm – 50 mm
Width 100 mm – 2600 mm
Length 500 mm – 10000 mm
Finish Mill Finish, Customer-Specific Finish
Type Hot-Rolled (HR) / Cold-Rolled (CR) Sheets
Temper O, H12, H14, H16, H18, H19, H22, H24
Surface Bright, polished, hair line, brush, sand blast, embossed, etching

KEY FEATURES


  • Excellent corrosion resistance
  • good forming ability
  • high ductility
  • reflective
  • surface
  • food-safe
  • aluminium
  • easy to fabricate
  • economical
  • widely used in packaging and HVAC.


PRODUCT RANGE


  • 1200 sheet
  • hot rolled 1200 sheet
  • cold rolled 1200 sheet
  • anodized 1200 sheet
  • mirror finish 1200 sheet
  • polished 1200 sheet
  • brushed 1200 sheet
  • embossed 1200 sheet
  • coated 1200 sheet.

GLOBAL EQUIVALENTS


Region / StandardEquivalent
AA1200(USA)
ASTM B209 1200
ASME SB209 1200
UNS A91200
EN AW1200
EN 5733
EN 4852/4 (Europe)
ISO Al99.0(International)
DIN3.0205
DINAl99.0
Werkstoff 3.0205 (Germany)
BS 1200A(British Standard)
AFNOR A0(France)
UNI 1200(Italy)
GOST 4784AD0 (Russia)
GB/T 31901200
LF2
LD2 (China)
JIS H4000A1200
JIS A1200P(Japan)
KS D42011200 (Korea)
TSE EN 1200(Turkey)
SANS EN 1200(South Africa)
Mexico follows AA/ASTM1200
India follows AA/EN1200
GCC(UAE
Saudi
Qatar
Oman
Kuwait
Bahrain) uses ASTM/EN 1200.

TEMPER LIST


1200-O, 1200-H12, 1200-H14, 1200-H16, 1200-H18, 1200-H19, 1200-H22, 1200-H24, 1200-H26, 1200-H28, 1200-H32, 1200-H34, 1200-H36, 1200-H38


INDUSTRY APPLICATIONS


  • Electrical conductors
  • chemical storage tanks
  • food-grade utensils
  • HVAC insulation
  • reflective lighting panels
  • architectural interiors
  • packaging foil
  • fin stock
  • heat exchangers
  • cookware
  • nameplates.

Aluminium 1200 Sheet & Plate – Equivalent Grades


European Standard BS (OLD) USA (AA) Germany (DIN) ISO IS Canadian
EN AW-1200 HE2 1200 Al99 (DIN 3.0205) Al99.0 IS 737 – 1200 1200


Chemical Composition Of Aluminium Alloy 1200 Sheets & Plates :


Alloy Fe Si Mg Mn Cu Zn Ti Cr Each Al
1200 (min) 99.00
1200 (max) 0.30 0.30 0.05 0.05 0.10 0.10 0.05 0.05 0.05 remainder


Mechanical Properties Of Aluminium Alloy 1200 Sheets & Plates :


Alloy Temper UTS (MPa) % Elongation
Min Max 0.5 mm – 0.8 mm 0.81 mm – 1.30 mm 1.30 mm – above
1200 O 40 55 35 38 40
H14 85 105 14 16 18
H24 90 110 12 14 16


Physical Properties of Aluminium 1200 Sheets & Plates


Properties Metric
Density 2.71 Mg/m³
Melting Point 643°C – 657°C
Specific Heat (100°C) 900 J/kg·K

OUR SPECIAL GRADES


1050 1060 1070 1100 2014
2017 2024 3003 5005 5052
5754 5083 5086 6061 6082
7050 7075
