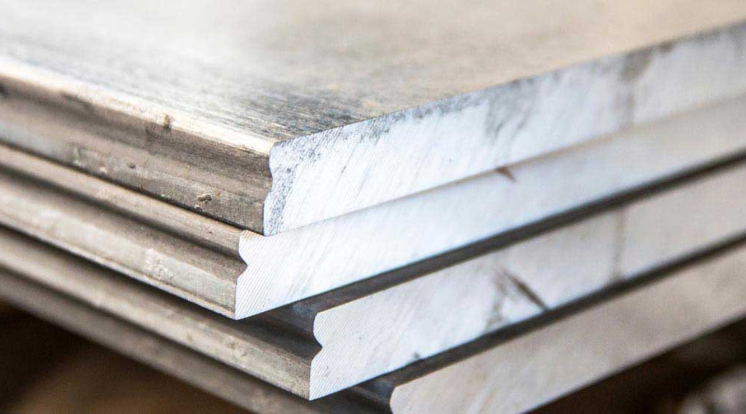

Aluminum Alloy 7075 Sheets and Plates is an aluminum-zinc alloy with 1%-8% zinc notwithstanding little measures of magnesium and little amounts of copper and chromium. Because of its high erosion protection properties, Aluminum Alloy 7075 Sheets and Plates are normally utilized as a part of marine and aviation applications. Aluminum Alloy 7075 Sheets and Plates is utilized as a part of airframe structures and other exceptionally focused on segments because of its high quality levels. Our 7075 plate has T651 temper, indicating it has been solution heat treated followed by a minimal stretching to reduce stresses in the material. The material was then artificially aged to allow the alloying elements to precipitate out of the material, to give immediate maximum strength.
| Standards | ASTM B209 / ASME SB209 |
|---|---|
| Thickness | 0.2-50 |
| Width | 100-2600 |
| Length | 500-10000 |
| Finish | Mill, Customer Specific Finish |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Surface | Bright, polished, hair line, brush, sand blast, embossed, etching |
| Region / Standard | Equivalent |
|---|---|
| AA7050 | (USA) |
| ASTM B209/B221/B241 7050 | |
| UNS A97050 | |
| EN AW | 7050 (Europe) |
| EN 573 | 3 |
| EN | |
| 485 | |
| AMS 4050 / 4342 / 4201 (Aerospace) | |
| ISO | AlZn6CuMgZr |
| DIN AlZn6CuMgZr | / |
| Werkstoff | |
| 3.4144 (Germany) | |
| BS L160 / L163 (UK | |
| AFNOR 7075/7050 | variants |
| (France) | |
| JIS | |
| H4000 7050 (Japan) | |
| GB/T 3190 7050 (China) | |
| KS D6006 | 7050 |
| (Korea) | |
| TSE | |
| EN 7050 | (Turkey) |
| SANS EN 7050 | (South Africa) |
| IS 737 (India | |
| Hindalco | |
| aerospace 7050 | |
| Jindal 7050 | |
| Russian V95 (approx high | strength) |
| GCC 7050 | aerospace |
| equivalents (UAE | |
| Oman | |
| Saudi). | |
7050-T7451, 7050-T7651, 7050-T76511, 7050-T73651, 7050-T6, 7050-T7452, 7050-T7652.
Aerospace structures, wing fittings, fuselage frames, bulkheads, defence equipment, missile components, high-strength machined parts, landing gear components, pressure-critical parts.
| Aluminium Grade | UNS | EN | ISO | WNR |
|---|---|---|---|---|
| 7050 | A97050 | EN3982 | AlZn6CuMgZr | 3.4144 |
| Grade | Element | |||||||
|---|---|---|---|---|---|---|---|---|
|
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
Ti
|
|
7050
|
0.12
|
0.15
|
2.0/2.6
|
0.10
|
1.9/2.6
|
0.04
|
5.7/6.7
|
0.06
|
| Properties | Metric | Imperial |
|---|---|---|
|
Tensile strength
|
515 MPa
|
74695 psi
|
|
Yield strength
|
455 MPa
|
65992 psi
|
|
Fatigue strength
|
240 MPa
|
34809 psi
|
|
Elastic modulus
|
70-80 GPa
|
10153-11603 ksi
|
|
Poisson’s ratio
|
0.33
|
0.33
|
|
Elongation
|
11%
|
11%
|
| Properties | Metric | Imperial |
|---|---|---|
|
Density
|
2.6-2.8 g/cm3
|
0.0939-0.101 lb/in3
|
|
Melting point
|
494°C
|
920°F
|
