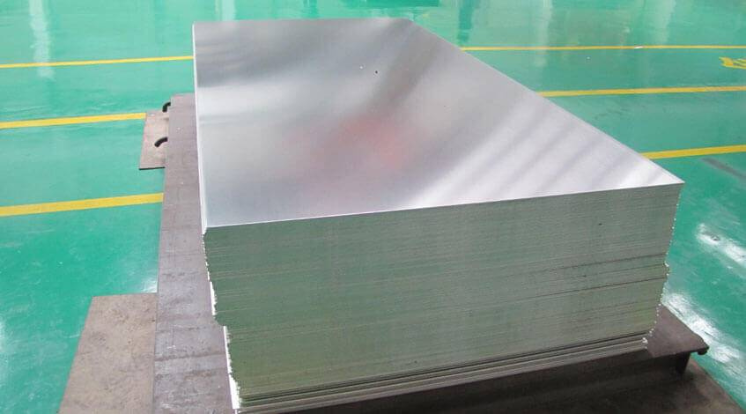

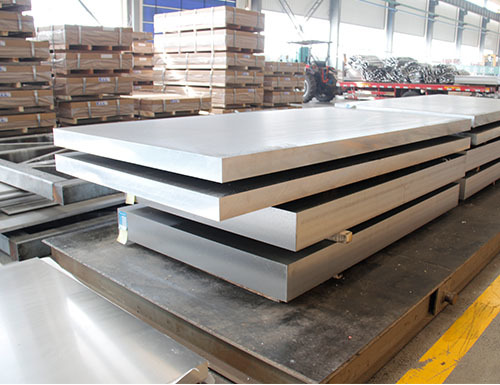

The aluminium 5083 Plates are made from the aluminium alloy having magnesium and chromium with it. These steel plates are having many of the greater features which have provided usable results. These plates are having much of the Resistance to seawater and industrial chemicals. They are also resistant to all other types of corrosive materials and hostile environment. 5083 Aluminium Alloy also retains exceptional strength after welding. It has the highest strength of the non-heat treatable alloys but is not recommended for use in temperatures in excess of 65°C. Aluminium 5083 is a medium strength magnesium-manganese-chromium-aluminium alloy. The 5000 series grades of aluminium are non heat-treatable alloys. Aluminium 5083 is known for exceptional performance in extreme environments. Aluminium 5083 is highly resistant to attack by both seawater and industrial chemical environments. The temper is achieved by the plate being fully annealed and then rolled to the required temper, rather than being heat treated.
| Standards | ASTM B209 / ASME SB209 |
|---|---|
| Thickness | 0.5 MM - 6.35 MM |
| Width | 500 - 3000 MM |
| Length | 2500 - 6000 MM |
| Finish | Mill, Customer Specific Finish |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Surface | Bright, polished, hair line, brush, sand blast, embossed, etching |
| Region / Standard | Equivalent |
|---|---|
| AA5083 | (USA) |
| ASTM B209/B928 5083 | |
| UNS A95083 | |
| AMS 4019 | |
| EN AW | 5083 |
| EN 573 | 3 |
| EN | |
| 485 | 2/4 |
| ISO | AlMg4.5Mn0.7 |
| EN Numeric: **54300** | (Europe/China) |
| DIN AlMg4.5Mn | / |
| Werkstoff | |
| 3.3547 (Germany) | |
| BS N8 | / Grade 5083 (UK) |
| AFNOR A | G4.5 (France) |
| UNI 5083 | (Italy) |
| JIS | |
| H4000 A5083 | |
| JIS H4040 A5083 | H116/H321 (Japan) |
| GB/T 3190 | 5083 |
| **54300 China | |
| Equivalent** | |
| A5083P | |
| LF21 (China) | |
| KS D6701 | 5083 (Korea) |
| TSE EN 5083 | (Turkey) |
| SANS | EN |
| 5083 (South Africa) | |
| NMX | H Marine 5083 (Mexico) |
| IS 5082 (India | |
| IS 737 | |
| IS | |
| 736 | |
| Hindalco 5083 | |
| Jindal 5083 | |
| Russian equivalents: | AMg5 |
| AMg5M | |
| 5083 Russian | |
| equivalent | |
| GCC equivalents: 5083 | UAE grade |
| 5083 Oman grade | |
| 5083 Saudi grade. | |
H14 / H24 / H18 / T-O / T351 / T3 / T4 / T651 / T6 / H116 / H32 / H111
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
|---|---|---|---|---|---|---|
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5083
|
Bal
|
0.40 max
|
0.40 max
|
0.10 max
|
0.40 / 1.0
|
0.05 / 0.25
|
4.0 / 4.90
|
0.15 max
|
0.25 max
|
0.05 max
|
0.15 max
|
| Properties | Metric |
|---|---|
| Proof Stress | 125 Min MPa |
| Tensile Strength | 275 – 350 MPa |
| Hardness Brinell | 75 HB |
| Elongation | 12 Min % |
