Aluminium 2014 Sheet / Plate

Aluminium 2014 Sheet / Plate Supplier & Stockist in India

Filter

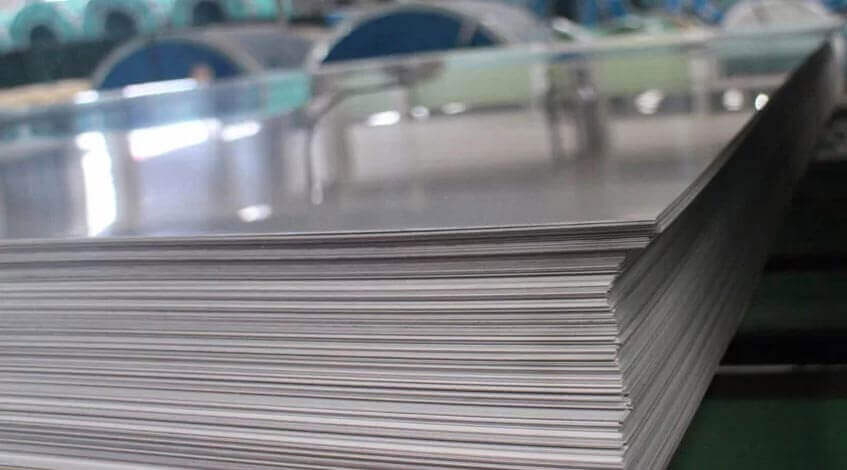

Aluminium 2014 Sheet & Plates

Max Pipes and Fittings Inc. is one of the most reliable and trustworthy Stockist and Suppliers of Aluminium 2014 Sheets. The company operates globally as a Stockist and Supplier, supplier, stockist, and exporter of a comprehensive range of aluminium sheets.

Grade 2014A is a high-strength aluminium alloy that retains its strength after heat treatment. It contains 4–5% copper and is supplied in a fully heat-treated condition (solution heat-treated and artificially aged). Typical applications of aluminium alloy 2014A include high-strength components used in the aerospace and defence industries. It offers good machinability and hardness, but it is not suitable for welding and is prone to stress-corrosion cracking.


Sheet & Plates Specifications

Standards ASTM B209 / ASME SB209
Thickness 0.5 MM - 6.35 MM
Width 500 - 3000 MM
Length 2500 - 6000 MM
Finish Mill, Customer Specific Finish
Type Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Surface Bright, polished, hair line, brush, sand blast, embossed, etching

KEY FEATURES


  • High strength
  • heat-treatable
  • excellent machinability
  • aerospace approved
  • fatigue
  • resistant
  • durable
  • ideal for structural load-bearing parts.

PRODUCT RANGE


  • 2014 sheet
  • forged 2014 sheet
  • rolled 2014 sheet
  • machined 2014 sheet
  • heat-treated 2014 sheet
  • T6 2014 sheet
  • T651 2014 sheet
  • precise tolerance 2014 sheet
  • aerospace grade 2014 sheet

GLOBAL EQUIVALENTS


Region / StandardEquivalent
AA2014(USA)
ASTM B209/B221 2014
ASME SB209/SB221 2014
UNS A92014
EN AW2014 (Europe)
EN 5733
EN485
EN755
ISOAlCu4SiMg
DINAlCu4SiMg
Werkstoff 3.1255 (Germany)
BSL168
BS L65 (UK
GOST AK41
AK41T (Russia – Aerospace Alloy)
GB/T 3190LY12
LC4
LC5 (China)
JIS H4000A2014
JIS H4040(Japan)
AFNOR AU4G (France)
UNI 2014(Italy)
KS D60032014 (Korea)
TSE EN 2014(Turkey)
SANS EN 2014(South Africa)
Mexico
India
GCC(UAE
Saudi
Oman
Qatar
Kuwait
Bahrain)

TEMPER LIST


H14 / H24 / H18 / T-O / T351 / T3 / T4 / T651 / T6 / H116 / H32 / H111


INDUSTRY APPLICATIONS


  • Aerospace structural components
  • aircraft fittings
  • defence parts
  • missile components
  • gears
  • shafts
  • fasteners
  • automotive suspension
  • heavy engineering
  • pressure vessels
  • high-strength machined parts.

Aluminium 2014 Sheets Equivalent Grades


European Standard BS (OLD) WNr UNS ISO USA (AA) GERMANY (DIN) IS Canadian
EN AW-2014 HE15 3.1255 A92014 AlCu4SiMg 2014 AlCuSiMn 24345 B26S


OUR SPECIAL GRADES


1050 1060 1070 1100 2014
2017 2024 3003 5005 5052
5754 5083 5086 6061 6082
7050 7075

Chemical Composition Of 2014 Aluminium Sheets & Plates


Chemical Element % Present
Silicon (Si) 0.50 – 0.90
Iron (Fe) 0.0 – 0.50
Copper (Cu) 3.90 – 5.00
Zinc (Zn) 0.0 – 0.25
Manganese (Mn) 0.40 – 1.20
Magnesium (Mg) 0.20 – 0.80
Titanium (Ti) 0.0 – 0.15
Others (Total) 0.0 – 0.15
Chromium (Cr) 0.0 – 0.10
Nickel (Ni) 0.0 – 0.10
Other (Each) 0.0 – 0.05
Titanium + Zirconium (Ti+Zr) 0.0 – 0.20
Aluminium (Al) Balance

Mechanical Properties Of 2014 Aluminium Sheets & Plates


Mechanical Property Value
Tensile Strength 440 Min MPa
Proof Stress 390 Min MPa
Hardness Brinell 133 HB

Physical Properties Of 2014 Aluminium Sheets & Plates


Physical Property Value
Density 2.82 g/cm³
Modulus of Elasticity 71 GPa
Electrical Resistivity 0.045 x10^-6 Ω .m
Thermal Conductivity 138 W/m.K
Thermal Expansion 23 x10^-6 /K
Melting Point 535 °C
