Aluminium 3003 Sheet / Plate

Aluminium 3003 Sheet / Plate Supplier & Stockist in India

Filter

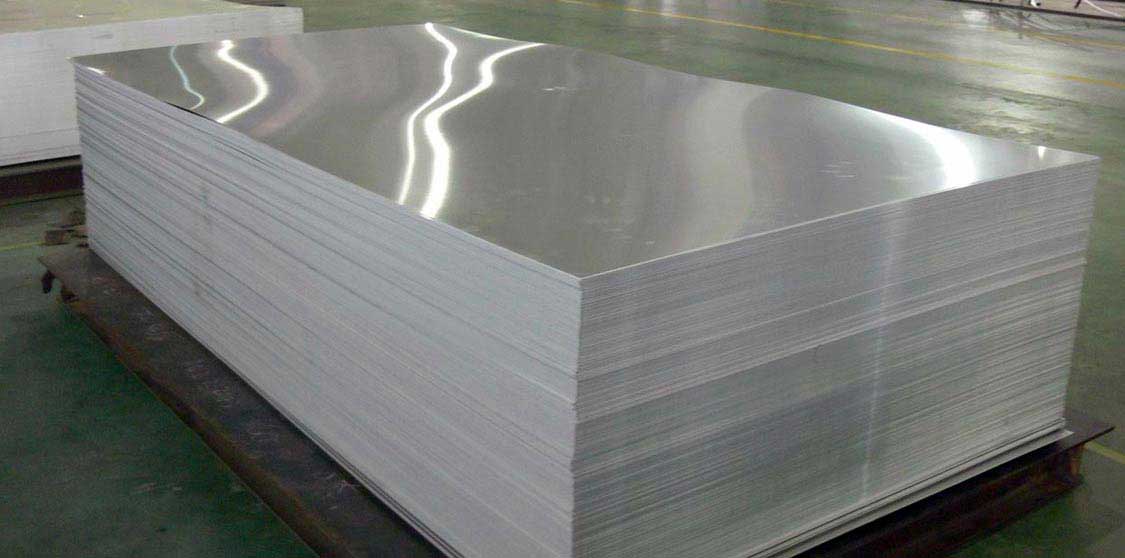

Aluminium 3003 Sheet & Plates

We are a reputed Stockist and Supplier of a wide variety of Aluminium Alloy 3003 Sheets and Plates. 3003 Aluminium Plates are manufactured using high-quality steel and the latest technology. The increased aluminium alloy content of 3003 Aluminium Plain Sheets, Alloy 3003 Shim Sheets, Alloy 3003 Coils and Aluminium 3003 Foils delivers greater yield and tensile strength. 3003 is a standard aluminium grade and has improved mechanical properties over 1050. It is readily fabricated and, like all aluminium, is less than a third of the mass of steel and offers improved corrosion resistance. Aluminium is an excellent conductor of heat and electricity.


Sheet & Plates Specifications

Standards ASTM B209 / ASME SB209
Thickness 0.2-50
Width 100-2600
Length 500-10000
Finish Mill, Customer Specific Finish
Type Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Temper O,H12,H14,H16,H18,H19,H22,H24
Surface Bright, polished, hair line, brush, sand blast, embossed, etching

KEY FEATURES


  • Excellent corrosion resistance
  • medium strength
  • good formability
  • weldable
  • lightweight
  • economical
  • suitable for chemical & food applications

PRODUCT RANGE


  • 3003 sheet
  • hot rolled 3003 sheet
  • cold rolled 3003 sheet
  • anodized 3003 sheet
  • mirror finish 3003 sheet
  • polished 3003 sheet
  • brushed 3003 sheet
  • embossed 3003 sheet
  • coated 3003 sheet

GLOBAL EQUIVALENTS


Region / StandardEquivalent
AA3003(USA)
ASTM B209 3003
ASME SB209 3003
UNS A93003
EN AW3003
EN 5733
EN 4852/4 (Europe)
ISOAlMn1Cu
DINAlMnCu
Werkstoff 3.0517 (Germany)
BS N3(UK)
AFNOR A M1(France)
UNI 3003(Italy)
GOST AMts(Russia)
GB/T 31903003 (China)
JIS A3003(Japan)
KS D42013003 (Korea)
TSE EN 3003(Turkey)
SANS EN 3003(South Africa)
Mexico
India
GCC(UAE
Saudi
Qatar
Oman
Bahrain
Kuwait)

TEMPER LIST


3003 O, 3003 H12, 3003 H14, 3003 H16, 3003 H18, 3003 H22, 3003 H24, 3003 H26, 3003 H28, 3003 H32, 3003 H34, 3003 H36, 3003 H38.


INDUSTRY APPLICATIONS


  • Chemical equipment
  • food processing
  • architectural cladding
  • heat exchanger fins
  • cookware
  • roofing sheets
  • insulated panels
  • storage tanks
  • HVAC evaporator fins
  • signage
  • general fabrication .

Aluminium 3003 Sheets Equivalent Grades


European Standard OLD WNr UNS ISO USA (AA) GERMANY (DIN)
AW-AlCu4Mg1 AU4G1 3.0517 A93003 AlCu4Mg 3003 AlCuMg2

OUR SPECIAL GRADES


1050 1060 1070 1100 2014
2017 2024 3003 5005 5052
5754 5083 5086 6061 6082
7050 7075

Chemical Composition Of Aluminium Alloy 3003 Sheets & Plates :


Aluminum (Al): Remainder
Chromium (Cr):
Copper (Cu): 0.05 to 0.20%
Iron (Fe): 0.7%
Magnesium (Mg):
Manganese (Mn): 1.0 to 1.5%
Other Total: 0.15%
Silicon (Si): 0.6%
Titanium (Ti):
Zinc (Zn): 0.10%

Mechanical Properties Of Aluminium Alloy 3003 Sheets & Plates:


Properties Metric Imperial
Tensile strength 130 MPa 18855 psi
Yield strength 125 MPa 18130 psi
Shear strength 83 MPa 12039 psi
Fatigue strength 55 MPa 7977 psi
Elastic modulus 70-80 GPa 10153-11603 ksi
Poisson’s ratio 0.33 0.33
Elongation 10% 10%
Hardness 35 35
