Aluminium 3105 Sheet / Plate

Aluminium 3105 Sheet / Plate Supplier & Stockist in India

Filter

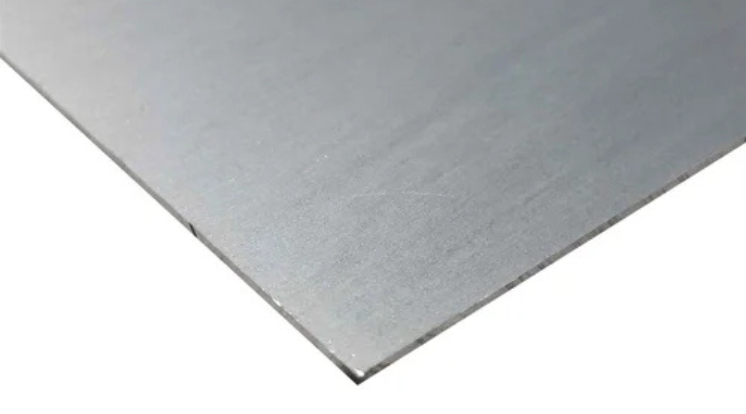

Aluminium 3105 Sheet / Plate

Max Pipes and Fittings Inc. proudly offers a wide range of Aluminium 3105 Sheets & Plates. Our products are available in multiple forms, including sheets, plates, hexagonal rods, wires, blocks, angles, flanges, valves, couplings, and nipples. These Aluminium 3105 sheets and plates are renowned for their high strength, excellent machinability, and reliable performance, making them ideal for precision engineering and structural applications. Sourced from certified and trusted Stockist and Suppliers, our Aluminium 3105 products comply with strict industrial standards and quality norms. Available in custom thicknesses and dimensions, they cater to diverse requirements in aerospace, automotive, and mechanical engineering, ensuring superior dimensional accuracy and consistent quality.

Features:

  • High-strength and durable, designed for heavy-duty and long-term applications
  • Excellent corrosion resistance, suitable for demanding industrial environments
  • Superior tensile strength, ensuring reliable structural performance
  • Lightweight yet robust, making it ideal for aerospace, automotive, and mechanical applications
  • Good machinability and formability, allowing cutting, bending, and shaping without cracking

Sheet & Plates Specifications

Standards ASTM B209 / ASME SB209
Thickness 0.2 mm – 50 mm
Width 100 mm – 2600 mm
Length 500 mm – 10000 mm
Finish Mill Finish, or Customer-Specific Finish
Type Hot-Rolled (HR) / Cold-Rolled (CR) Sheets
Temper O, T4, T6, H12, H14, H16, H18
Surface Bright, Polished, Hairline, Brush, Sand Blast, Embossed, Etching

KEY FEATURES


  • Medium strength
  • corrosion resistant
  • good formability
  • weldable
  • lightweight
  • durable
  • ideal for
  • roofing & beverage packaging.


PRODUCT RANGE


  • 3105 sheet
  • hot rolled 3105 sheet
  • cold rolled 3105 sheet
  • anodized 3105 sheet
  • mirror finish 3105 sheet
  • polished 3105 sheet
  • brushed 3105 sheet
  • embossed 3105 sheet
  • coated 3105 sheet.

GLOBAL EQUIVALENTS


Region / StandardEquivalent
AA3105(USA)
ASTM B209 3105
ASME SB209 3105
UNS A93105
EN AW3105
EN 5733
EN 4852/4 (Europe)
ISOAlMn0.5Mg0.5
DINAlMnMg
Werkstoff 3.0515 (Germany)
BS 3105A(UK)
AFNOR AM2 (France)
UNI 3105(Italy)
GOST AMg2(Russia)
GB/T 31903105
LF21 (China)
JIS H4000A3105 (Japan)
KS D4201(Korea)
TSE EN 3105(Turkey)
SANS EN 3105(South Africa)
Mexico
India
GCC(UAE
Saudi
Oman
Qatar
Bahrain
Kuwait)

TEMPER LIST


3105-O, 3105-H12, 3105-H14, 3105-H16, 3105-H18, 3105-H22, 3105-H24, 3105-H26, 3105-H28, 3105-H32, 3105-H34, 3105-H36, 3105-H38


INDUSTRY APPLICATIONS


  • Building facades
  • roofing sheets
  • gutters
  • downspouts
  • insulated panels
  • beverage closures
  • cooking utensils
  • cladding
  • signage boards
  • heat exchanger fins
  • interior partition systems.

Aluminium 3105 Sheet & Plate – Equivalent Grades


European Standard BS (OLD) USA (AA) Germany (DIN) ISO IS Canadian
EN AW-3105 3105 AlMg1 (DIN 3.3205) AlMg1 IS 737 – 3105 3105


Chemical Composition of Aluminium Alloy 3105 Sheets & Plates


Alloy Fe Si Mg Mn Cu Zn Ti Cr Each Al
3105 (min) 0.7 0.6 0.8 0.5 0.2 Remainder
3105 (max) 1.3 0.7 1.3 1.0 0.2 0.3 0.2 0.3 0.05 Remainder


Mechanical Properties of Aluminium Alloy 3105 Sheets & Plates


Alloy Temper UTS (MPa) % Elongation
Min Max 0.5 mm – 0.8 mm 0.81 mm – 1.30 mm 1.30 mm – above
3105 O 110 145 22 24 26
H14 145 180 12 14 16
H24 170 205 10 12 14


Physical Properties of Aluminium 3105 Sheets & Plates


Properties Metric
Density 2.71 Mg/m³
Melting Point 605°C – 650°C
Specific Heat (100°C) 900 J/kg·K

OUR SPECIAL GRADES


1050 1060 1070 1100 2014
2017 2024 3003 5005 5052
5754 5083 5086 6061 6082
7050 7075
